MeeFog Products – Standardized Components of a Customized System
Felton through our partner – Mee Industries provides precision-engineered, turnkey solutions for even the most demanding application or project. Our position as the global leader in high-pressure fog technology means we work closely with engineers and operators around the world to meet special project requirements.
Mee Industries has a celebrated history of providing innovative, leading edge solutions for industrial applications including gas turbine inlet air cooling, humidification, evaporative cooling, agricultural use and special effects. Equally important is Mee’s well-deserved reputation for custom engineering and manufacturing fogging systems that are not only highly effective and reliable, but predictably efficient and economical to operate. Mee Industries Inc. is committed to developing, marketing, and supporting the most innovative and reliable fog systems available today
Mini-Mee Pump Unit
The new Mini – Designed as a full-featured, industrial quality, but low-cost fog pump for small applications.
- Compact design.
- Quiet operation
- Open design for easy access
Mee-3 Pump Unit
Fog pump for one zone, this will be more competitively priced than our HVAC pump units with onboard PLC’s.
- Suitable for single AHU applications.
- VFD with HMI or status relay via BACnet.
- Compatible with RO water.

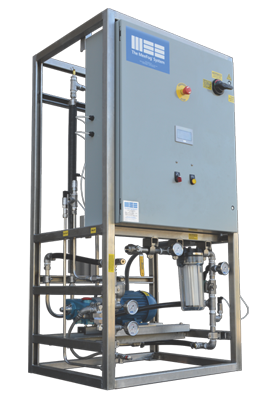

MFP Pump Unit
The MFP pump can go from zero to full load flawlessly. The PLC manages safety features and automatic redundancy control.
- PLC with optional BAC Net interface.
- Turndown can reach near zero capacity.
- Welded Stainless Steel Frame.
Elegant Design with Unparalleled Efficiency and Reliable Performance
Each MeeFog system is designed using a series of high pressure pumps to pressurize demineralized water, which flows through a network of the highest quality stainless steel tubes. The water enters an array of proprietary Mee impaction-pin nozzles which feature a 150 micrometer diameter orifice to produce billions of ultra-fine droplets per second. At an operating pressure of 2000 psi, the resulting average droplet size is far below 10 microns, or one tenth the diameter of a single strand of human hair. The resulting fog cools and evaporates more rapidly (as well as efficiently and economically) than any other fog method.
Most importantly, return on investment for installing a MeeFog™ System can be realized in less than one year.
Note: Mee can design and manufacture our revolutionary high-grade stainless steel nozzles with reduced orifices to produce even smaller droplets.

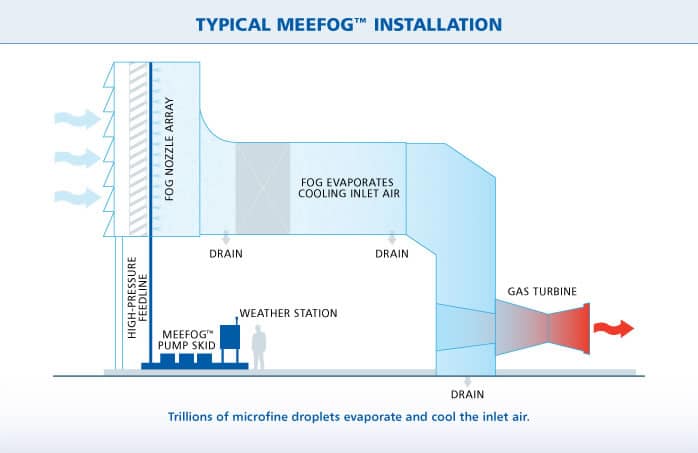

MeeFog Gas Turbine Inlet Air Fogging
MeeFog™ systems have been installed on over 80,000 MW of gas turbine capacity. With over 1,000 systems installed, the power boost from installed MeeFog™ inlet air fogging systems exceeds 8,000 MW. Fogging of a gas turbine engine is an art and a science, and there are several complexities that only our years of experience can address. Among our many repeat customers is a U.S. utility company that has installed MeeFog™ systems on over 60 of its heavy-duty gas turbines..
Mee Industries has worked closely with several utility companies worldwide in accommodating their special requests, accelerating delivery schedules to meet power crunches, and providing responsive after sales support. Our experience covers a wide range of heavy-duty and aeroderivative units ranging from 5 MW to 250 MW, and includes several projects with gas turbine OEMs.
MeeFog Humidification & Evaporative Cooling
The MeeFog system uses high-pressure pumps to pressurize treated supply water to between 1000 and 2000 psi. The stainless steel, MeeFog nozzles then atomize the water into billions of ultra-fine fog droplets.
MeeFog systems do not require compressed air or heat. Direct pressure means there are few moving parts (none in the air handlers or the humidified space). The energy consumed is a small fraction of that required by other technologies, such as compressed air, ultra-sonic, or canister steam systems.
MeeFog Special Effects
MeeFog™ systems offer artists and designers innovative and robust aesthetic possibilities to create living and moving pure water fog effects with several methods for producing ultra-fine fog droplets. Fog adds dimension and impact to a design, and it can be used to highlight and accentuate many design elements.
Mee Industries has a vision for the future that incorporates a firm commitment to quality research & development, product design, and continual excellence. No other company can compete with our depth of fog products or our approach to providing fog solutions that have unlimited possibilities.
The MeeFog system generates high volumes of super small fog droplets. These droplets evaporate quickly and are ideal for agricultural applications that require evaporative cooling or humidification.
All MeeFog systems are custom engineered to fit the exact needs of each project. We analyze the supply water and design a water treatment system to ensure many years of low maintenance nozzle operation.
Imagine the nicest, most ideal environment you can. Imagine the ability to enhance your current environment to achieve that dream… imagine MeeFog..
